stacker for raw coal handling applied to coal terminal stock

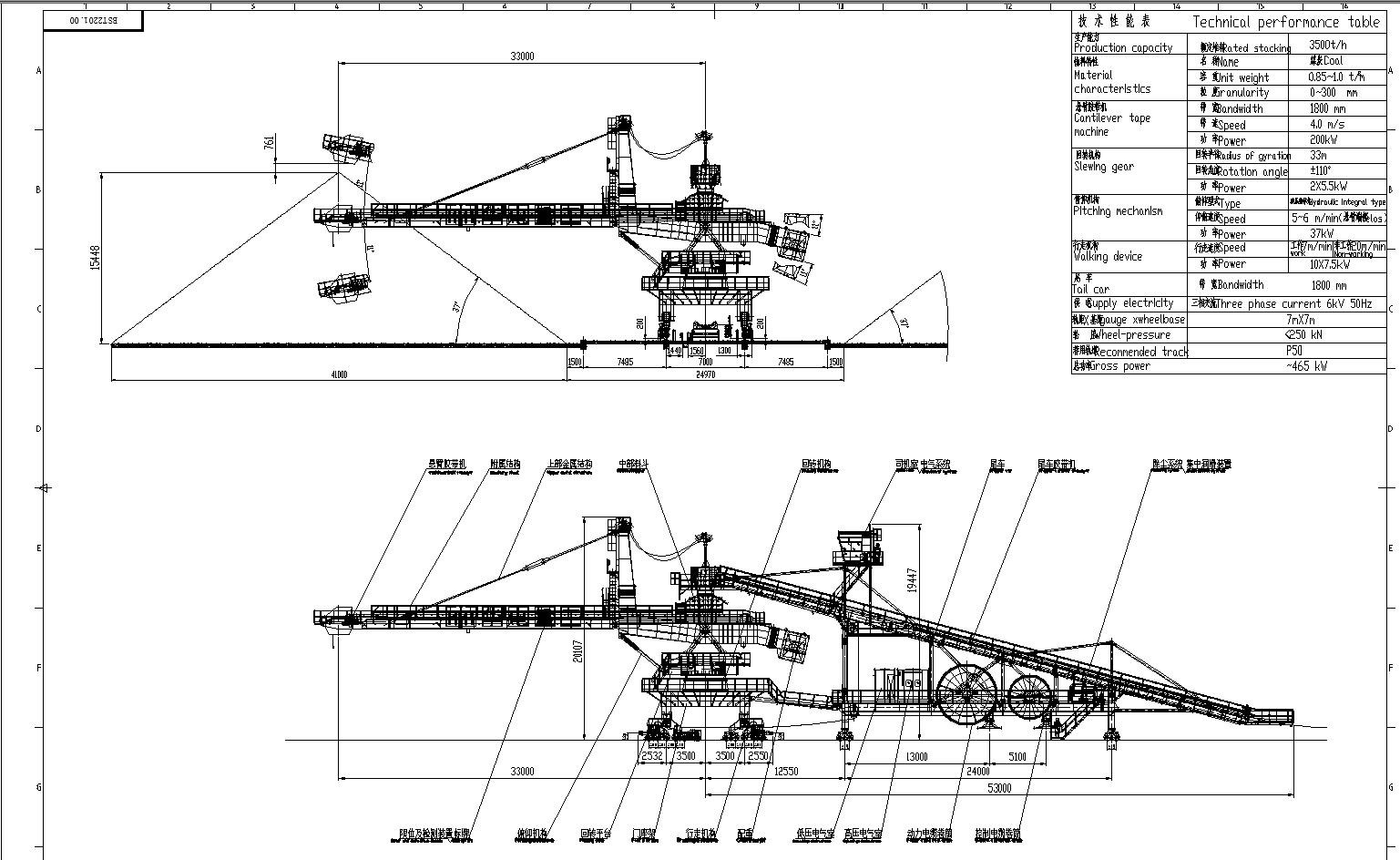

The luffing and slewing stacker is the most versatile type of stacker with 3,500 tons per hour capacity since it can slew from one stockpile to another on the other side of the yard, building uniform stockpiles on both sides of the yard feed conveyor. This stacker can build a stockpile in chevron, cone-shell, windrow, or strata stockpiling modes.

The machine adopts developed technology, economic cost, and reliable performance, with a service lifetime of up to thirty (30) years. The major steel structures are of welded construction made of steel plate or sectional steel and are of sufficient strength, rigidity, and stability. High strength grip bolts shall be used for site assembly of the major large steel structure members to facilitate the erection and pick-up points / lifting eyes are provided for each structural member to facilitate the transportation and handling operation. All structures and mechanisms are designed to bear the dynamic load, static load, horizontal load, and impact load. Besides the calculation for strength, rigidity, and fatigue, the calculation for the whole and partial stability shall be done as well. Each mechanism and component is designed to be of good performance and strength and also interchangeable to the extent feasible. Those wearing parts will be designed to be easily checked and replaced.

Specification of stacker

NOTICES

The customer shall provide the following information when placing order

• The character of bulk material
• Stockyard information
• Process flow chart
• Power supply
• Communication and control requirements

Photos of our factory

1.Brief Introduction—Bulk material conveying and service professional supplier

Shanghai Sunshine Industrial Technology is specialized in bulk material handling equipment, integrator and overseas agent of bulk material handling. Sunshine Industrial Technology takes the development of precision manufacturing capacity as its strategic goal， specializes in manufacturing large and medium-sized precision parts and reliable bulk material conveying equipment . In addition, we provide variety of solutions and equipment to clients based on requirement, including EPC, spare parts, consulting and design services. Our major product including load and unload equipment (train tipping machine system, ship unloader, ship loader etc), conveying equipment (belt conveyor, screw conveyor, bucket conveyor system, scraper conveyor system, dense phase pneumatic conveying system), storage equipment (bucket wheel reclaimer, scraper reclaimer, cranes and all kinds of grab bucket), screen equipment, auxiliary equipment.
In order to meet the client`s requirement, and provide comprehensive products and service in bulk material handling. We had signed a contract with bulk material handling equipment manufacturer leading company of China Huadian Caofeidian heavy industry equipment Co., Ltd ，in charge of the overseas market and project investment of Huadian Caofeidian heavy industry equipment Co., Ltd；Reaching an agreement in charge of the overseas market of Liaoning Zhigu mining equipment Co., Ltd ；Zhejiang Xiangshan Guangming Belt conveyor factory and Wuxi Yixiang machinery Co., Ltd.
To be sincere and keep moving, Shanghai Sunshine industrial technology Co., Ltd always dedicate to high quality products and service!


2.Organization structure

3.Maine product and technical consulting

4.qualification documents

Qualification documents of authorized units in overseas markets

Qualification documents of authorized units in overseas markets

5.Production equipment and facilities

6.Production product display
